Tohatsu gives boaters exactly what they need in mid range portables more power
and less weight. All of these truly portable models offer an incredible horse power

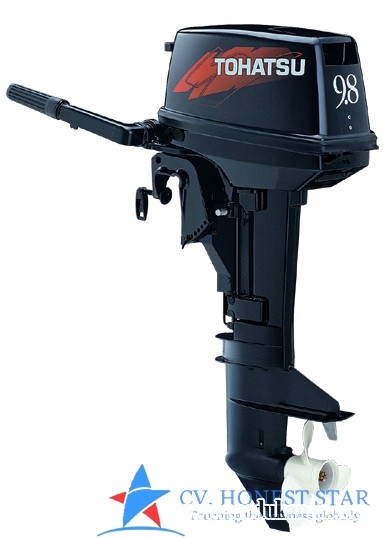

to weight ratio, led by the Tohatsu 9.8 at just over 26 kgs. Whatever your boating
application, these are the ultimate outboards for convenience, reliability and portability.

Features
• Excellent reliability with proven two stroke technology
• Simple in design

Easy Operation and handling
• Loop charged induction for smooth operation and fuel economy
• CD ignition system for quicker starts
• Remote control

Fundamentals for user convenience and reliability
• Through the prop exhaust for a quiet ride
• Thermostatically controlled cooling system for consistent engine temperature
• Stainless steel water pump housing for outstanding durability
• High grade marine aluminum alloy that provides the ultimate protection against corrosion
• Zinc coating on internal water passages for superior corrosion resistance
• Aluminum propeller

Protection
• Safety lanyard ( an essential protection feature standard on all Tohatsu outboards )
• Start in gear protection for safer engine starting



Specification
• Type : Two Stroke
• Max. Output  : 9.8HP ( 7.2kw )
• Max. Operating range : 5000-6000 rpm
• Fuel consumption at W.O.T :   5.1 L / Hr( 1.35  gal / Hr )

• Number of cylinder : 2
• Bore x Stroke mm ( in ) : 50 x 43 ( 1.97 x 1.69 )
• Displacement  : 169 cc ( 10.31 Cu in )
• Engine lubrication system : Premixed Fuel
• Starting system : Manual or Electric starter
• Spark plug : NGK BP7HS-10 or BPR7HS-10
• Ignition timing degree : ATDC2.5œ - BTDC26œ
• Alternator output Cartain Model : 12V 80W 7A
• Engine oil : Genuine recommended 2 stroke engine oil ( TCW-3 )
• Volume of engine oil tank L ( gal ) : -
• Fuel tank capacity  : 12 L ( 3.17 gal )
• Speed control : Twist grip type or Remote control
• Gear reduction ratio : 2.08 ( 13: 27 )
