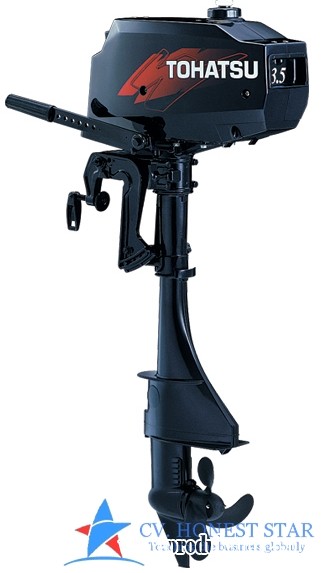

Tohatsu gives boaters exactly what they need, more power and less weight All
of these truly portable models offer an incredible horse power to weight ratio.
These are the ultimate outboards for convenience and portability. The 5 weighs
only 19 kgs.

Features
• Excellent reliability with proven two stroke technology
• Simple in design

Easy Operation and handling
• Loop charged induction for smooth operation and fuel economy
• CD ignition system for quicker starts
• Carrying handle

Fundamentals for user convenience and reliability
• High grade marine aluminum alloy that provides the ultimate protection against corrosion
• Zinc coating on internal water passages for superior corrosion resistance
• 3.5B hp : F - N with shift lever, R by 360 degree steerability
• 3.5A hp : F - R by 360 degree steerability
• Resin propeller
• Built in fuel tank 1.4 liter

Protection
• Safety lanyard ( an essential protection feature standard on all Tohatsu outboards )



Specification
• Type : Two Stroke
• Max. Output : 3.5 HP ( 2.6 kw)
• Max. Operating range  : 4200-5300 rpm
• Fuel consumption at W.O.T : L / Hr ( gal / Hr ) 1.7 ( 0.45 )
• Number of cylinder : 1
• Bore x Stroke mm ( in ) : 47 x 43 ( 1.85 x 1.69 )
• Displacement cc ( Cu in ) : 74.6 ( 4.55 )
• Engine lubrication system : Premixed Fuel
• Starting system : Manual
• Spark plug : NGK BP6HS-10 or BPR6HS-10
• Ignition timing degree : BTDC20œ
• Alternator output : -
• Engine oil : Genuine recommended 2 stroke engine oil ( TCW-3 )
• Volume of engine oil tank L ( Gal ) : -
• Fuel tank capacity L ( Gal ) : 1.4 ( 0.37 )
• Speed control : Throttle lever type
• Gear reduction ratio Btype/ Atype : 2.15 ( 13: 28 ) / 1.85( 13: 24 )
