Global Water Flow Probe FP 111

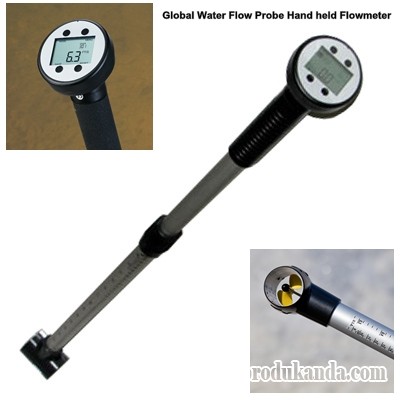

Global Water Flow Probe FP 111 Hand held Flowmeter

Description

Ideal for storm run off studies or flow measurings of rivers, streams, canals, and
sewers. Incorporates true velocity averaging for the most accurate measurement
possible. The probe shaft is available in lengths that extend from 3’ to 6’ and from
5’ to 15’ . Located on the bottom tip is a protected Turbo Prop sensor which uses the
most advanced positive displacement technique available. For minimal friction, this 2”
Turbo Prop sensor rotates freely on a bearing shaft with no mechanical interconnections.
Magnetic material in the propeller passes a pickup coil in the housing producing electrical
impulses. These electrical impulses are then carried by wire to a readout display on top of the
handle. This readout display amplifies and converts the signal into feet/ meters per second
readings. Instantaneous velocity and true average velocity are then displayed. A unique two
button keypad allows other functions to be displayed including minimum/ maximum velocity,
time of day, timer, totalizer for batch flows, and RPM for accurate low velocity measurement.
Features a 30 record memory, padded gun type carrying case, five year long life battery for
readout display ( no battery required for Turbo Prop) , and low battery indicator. Probe can
be extended up to 25’ with standard PVC pipe and electrical extension cable.

Specifications

• Range : 0.3 to 19.9 FPS ( 0.1 to 6.1 MPS)
• Accuracy : average velocity ± 0.1 FPS
• Averaging : true digital running average
• Display : LCD
• Sensor Type : protected Turbo Prop propeller with electromagnetic pickup
• Weight : 2 lbs
• Size : probe expands from 3’ to 6’ or from 5’ to 15’ ( depending on model) , sensor housing is 2” in dia. x 3” L
• Materials : PVC handle and propeller housing, anodized aluminum shaft, stainless steel bearing
• Power : Five year long life battery
• Operating temperature : -4° F to 158° F ( -20° C to 70° C)
