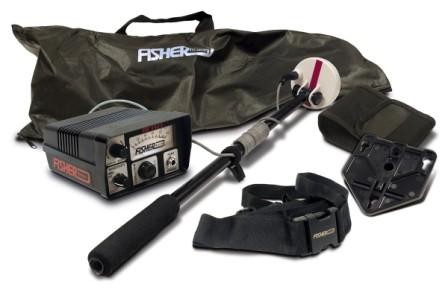

Fisher M-101 Rebar Locator

The Fisher M-101 metal detector was designed specially for finding reinforcing bars and
other metal objects embedded in concrete, conduits, PK nails, wiring, wall studs and other
metallic objects. Users may expect accuracy to 1/ 4 " of the center line of the rebar.
Turn the instrument on and only the penetration control need be adjusted for most
operations, allowing maximum penetration depth for metals.

A preset circuit eliminates ground effects caused by highly mineralized materials and
false signals due to loop movement. The M-101 also can effectively locate small metal
items carried on or within a person and is substantially more sensitive than the average
low cost metal detectors used at airports, so that a given metal item can be found at a
greater distance from the search loop itself. Searches in water may be up to the control
box. The search loop and cord are waterproof.

Features:
• Detects all metals
• Accurately pinpoints steel reinforcing bars, or " rebars " in concrete
( typically 8-9 " depth for 1/ 2 " diameter rebar)
• Detects intersections of rebar or mesh
• Audio and visual indications of nearby metal
• Rugged construction
• VLF, ( Very Low Frequency) , operation
• Operates on universally available 9V batteries
• Quick tune ready for operation in seconds
• Fully waterproof search loop

Specifications
• Operating Frequency : 4.5kHz
• Power Supply : + / – 9V, 2 – 9V NEDA 1604
• Weight : 2.8lbs ( 1.3kg)
• Dimensions: Control Box : 3 x 5 x 6” ( 8 x 12 x 16cm)
• Shipping Dimensions : 26 ½ x 6 ¼ x 6 ¼ ” ( 67 x 16 x 16cm)
