Armasight Spark-B CORE 4x
Night Vision Binocular

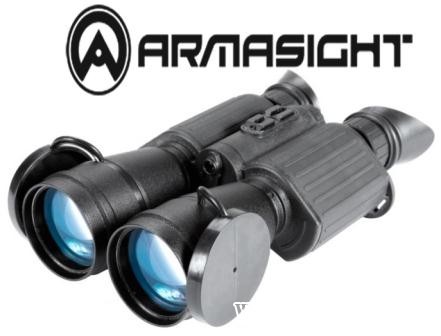

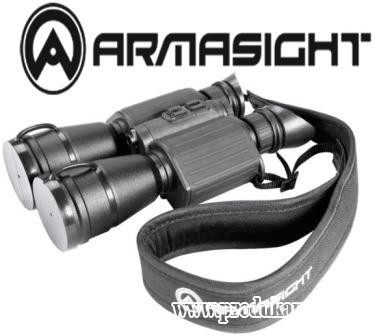

Armasight Spark-B CORE 4x Night Vision Binocular
Description
The Armasight Spark-B is the night vision binocular with 4x magnification
built around CORE ( Ceramic Optical Ruggedized Engine ) image intensifier
tubes. Unlike Gen 1 Image intensifier tubes that are fragile because they are
made from glass, CORE IITs are made just like Gen 2 and Gen 3, by fusing
metal alloys with ceramic compounds. CORE technology is based on durable
elements and allows tight component stacking, resulting in image tubes that
are exceptionally shockproof and vibration resistant. Robust packaging protects
easy to break protrusions common in Gen 1 tubes, and allows for a streamlined
design that is lighter, more compact, and more reliable than typical night vision
devices.
The CORE platform offers ‘ best in class’ resolution with 60-70 lp / mm, and
increased photocathode sensitivity levels of upwards of 400¼ A / lm, which
provide image quality in challenging ambient light conditions that rivals high end
Gen 2 image tubes. The Armasight Spark-B is a rugged and lightweight night vision
binocular. Dual tube design provides increased depth perception and outstanding
clarity. A built in, focusable short range IR illuminator allows the units to work well
even in complete darkness, and an optional longrange infrared illuminator will
dramatically boost the viewing range when you need it most.

Features
• High resolution CORE image intensifier tube
• 4x magnification
• Multi coated all glass optics
• Compact, rugged design
• Rubberized for extra protection
• Ergonomic, simple, easy to operate controls
• Utilizes single CR123A lithium battery
• Built in Infrared illuminator
• Water and fog resistant
Specification
• Magnification : 4x
• Eye Relief, mm : 20 mm
• Exit Pupil Diameter, mm : 13.6 mm
• Lens System : 80mm, F / 1.7
• FOV : 14°
• Range of Focus : 20 m to infinity
• Diopter Adjustment : + 5 to -5 dpt
• Controls : Digital
• Infrared Illuminator : Built in or detachable long range IR illuminator
• Power Supply : 1x CR123A ( 3V )
• Environmental Rating : Water and fog resistant
• Dimensions : 220 x 147 x 63 mm / 8.7 x 5.8 x 2.5 in
• Weight : 1.33 kg / 2.93 lbs
